Ultrasonic Flow Meter

Manufacturer of a wide range of products which include portable ultrasonic flow meter and battery operated electromagnetic flow meter.

Portable Ultrasonic Flow Meter
Rs 75,000 / Piece

Minimum Order Quantity: 1 Piece

Usage/Application WATER LINE
Material Stainless Steel
Brnd RLT
Model Name/Number ULTRASONIC FLOW METER PORTABLE
Flow Media Type Liquid
Flow Range 10000 M3/HR
Application Media WATER , LIQUID
Display Digital
Accuracy +/- 0.2 %
Size 50MM TO 3000MM
Ingress Protection 67
Standards ISO
Response Time 10 SEC
Maximum Working Pressure 50 BAR
Country of Origin Made in India

WE HAVE READY STOCK OF CLAMP ON PORTABLE ULSTRASONIC FLOW METER WE HAVE NABL TRACEBILITY CERTIFICATE FOR CALIBRATION WORK UPTO 3000MM LINE SIZE

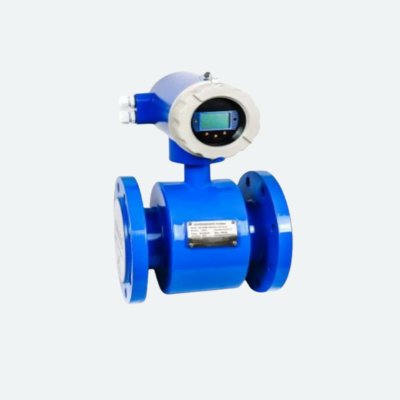

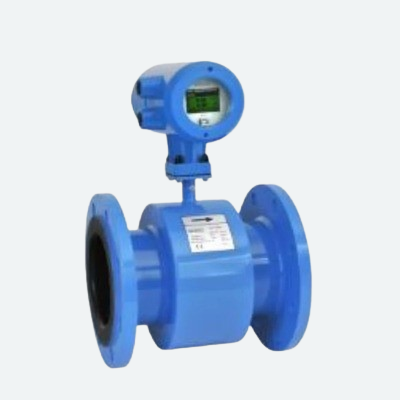

Battery Operated Electromagnetic Flow Meter
Rs 24,500 / Piece

Minimum Order Quantity: 1 Piece

Usage/Application WATER
Material Stainless Steel
Application Media Any Liquid
Brnd Flowtech
Model Name/Number EMFM-108
Flow Media Type Liquid
Flow Range 10000 M3/HR
Application Media WATER , LIQUID
Display Digital
Accuracy 0.25% /0.5%

Flowtech Battery Operator Electromagnetic flow meter operation principle is based on measuring electromotive force induced in electrically conductive liquid when it moves in magnetic field. The magnetic field is furnished in the flow sensor's inner channel by a special electromagnetic system.

Inductive electromotive force (EMP) E is proportional to the mean flow velocity v, distance between the electrodes d (which is equal to the sensor's inner diameter), and magnetic field strength E = v ×d×B×k.

Technical Data Sheet :
Design material:
  • Flange : Carbon steel / Stainless steel Housing: Carbon steel / Stainless steel Lining : PTFE / Rubber
  • Electrode: stainless steel, titanium, tantalum, etc.
Tech. Specification:-
  • Nominal diameter of the pipeline, DN : 10 TO 1000 mm Accuracy : 0.25% /0.5%
  • Repeatability : 0.2
  • Maximum pipeline pressure : 25 bar / 40 bar on request Minimum conductivity : 1 µS/cm
  • Power supply : Battery operated : : 24v dc , : 230 v ac
  • Outputs:4-20 mA analog output; Pulse outputs , RS-485 interface , HIGH & Low alarm output.
  • Production Capacity: 500 Piece per month
