Product Brochure
Dial Size | 1.5 inch / 40 mm |
Brand | Baumer |
Pressure Range | 0 to 4 bar(0 to 60 psi) |
Use | Liquid |
Display Type | Digital |
Pressure Type | Gauge Pressure |
Connection Size | 1/2 inch |
View Complete details
Display Specs | 4+4 digits 7 Segment LED dual display Upper display: 10mm, Lower display: 7mm |
Input Specs | Thermocouple (J, K, T, R, S, etc), RTD (PT100) Sig inputs (-5 to 56mV, 0 to 10V, 0 to20mA) |
Output specifications | 4 to 20mA DC, 0 to 10 VDC |
Functional specifications | 1) PID Control 2) ON-OFF control, Control action1) PID Control 2) ON-OFF control |
Mechanical specifications | Mounting Panel |
Environment specifications Mechanical specifications O | Operating: 0 DegreeC to 50 DegreeC (32 to 122 DegreeF); Storage: 20 DegreeC to 75 DegreeC (-4 to 167 DegreeF) |
Humidity | 85% RH |
View Complete details
LED Indications | Output 1 ON, Output 2 ON, Auto tune |
POWER SUPPLY | 85 to 270V AC/DC, 6 VA max@230V AC |
Temperature | 0 to 50 DegreeC,, Storage : -20 to 75 DegreeC |
Humidity | 95% RH |
Display | 4 + 4 digit, 7 segment digital display 4 digit for DTC204A-2 / DTC324A-2 |
View Complete details

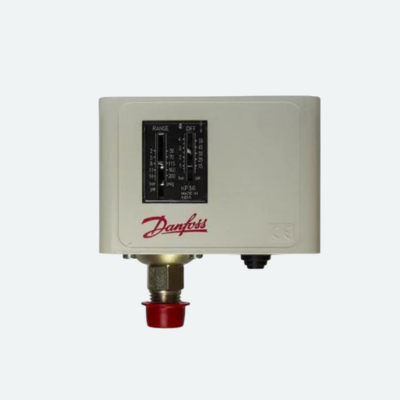

Pressure Switch Type | Temperature Pressure Switch |
Mounting | Panel, Wall, On-line, 2" pipe |
Applications | Hydraulics and pneumatics, Steel, Power, Special purpose machine |
Special features | Internal Switch point adjustment for critical applications, Stainless steel case option for corrosiv |
Output | Several ranges from -1 ... +75 bar |
Switch enclosure | GM style aluminium pressure die cast weatherproof to IP66 with nitrile gasket |
Sealing | Nitrile |
Operating condition | Electrical connection 1/2" NPT(F) per ASME B1.20.1 single entry standard Dual entry on request |
View Complete details
Pressure Range | 4 Bar |
Pressure Switch Type | Temperature Pressure Switch |
Contact Material | Silver |
View Complete details
View Complete details
Type | PT100 |
Accuracy | Class A |
Probe Diameter | 0.5 - 8 mm |
Probe Length | 0 - 150 mm |
Output signal | Analogue |
Sensor type | R8-81227320-0115/050.S01 with 1 x 4L connection wires |
Measuring temperature limit | - 40 DegreeC to + 280 DegreeC |
Material sensor | Brass or stainless steel |
Protection type | IP 67 |
Measuring current | 1mA |
View Complete details
Minimum Order Quantity: 1 Piece
Mounting Type | Top-Mount |
FEATURES: | Capacitance Level Transmitter is a low cost , High Accurate loop power 2 wire Transmitter having 4-2 |
Measuring range | 0.25 to 3m (Rod), 1 to 20m (Rope) |
Output | 4-20 made ( 2 wire loop power) |
Supply voltage | 12-30 V DC |
Temp | -20Deg C to 100 Dec C |
Country of Origin | Made in India |
